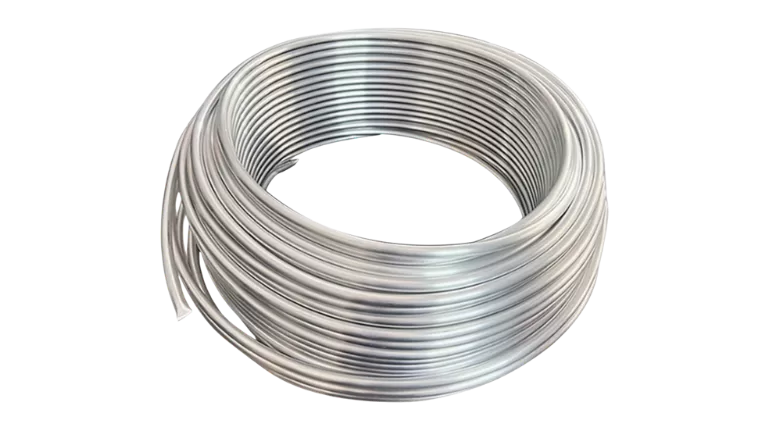

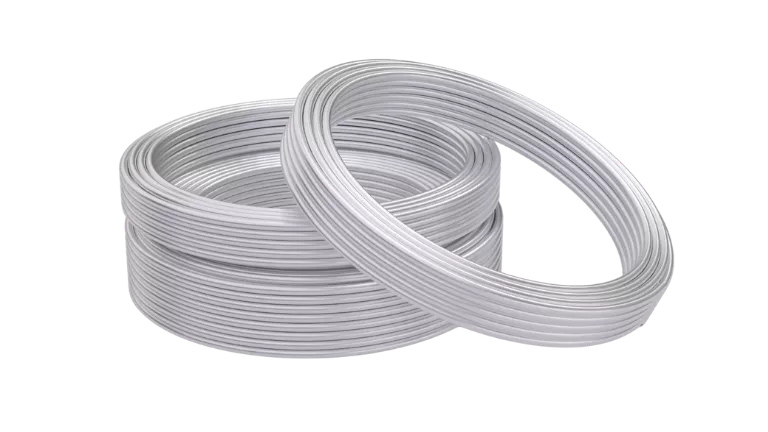

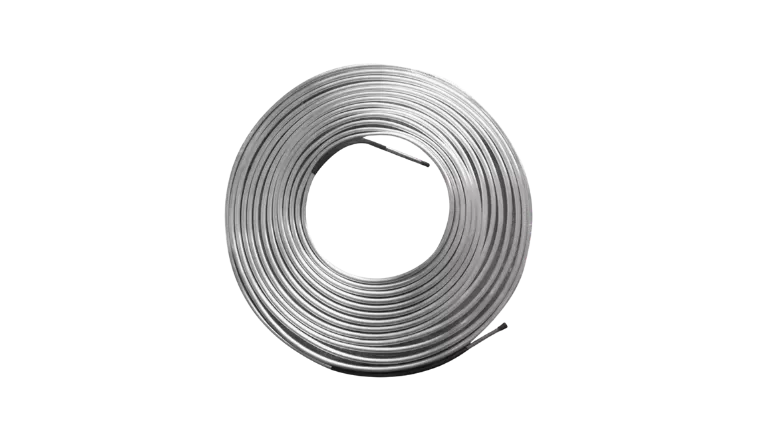

Custom Extruded Soft | Bendable Aluminum Tube
Our Extruded Soft Bendable Aluminum Tubes are made from high-purity 1xxx series aluminum through advanced extrusion processes. After extrusion, the tubes are annealed (O-Temper) to achieve low hardness, high ductility, and excellent flexibility. These properties make the tubes especially suitable for applications requiring easy bending, forming, or welding, as well as scenarios where lightweight and high corrosion resistance are important.
They are commonly used in air conditioning systems and heat exchangers, where reliable bendability and efficient thermal conductivity are essential.
Applications of Soft Aluminum Tubes
Soft Aluminum Pipe for Air Conditioning
Bendable soft aluminum pipe is ideal for HVAC systems, serving as cooling pipelines and AC tubing. Its flexibility allows for repeated bending during installation in tight spaces. Aluminum’s corrosion resistance ensures long-term durability in humid environments.
Bendable Aluminum Pipe for Heat Exchangers
Widely used in heat exchangers for its high thermal conductivity, flexibility, and corrosion resistance. The pipe can be formed into complex coils, maximizing heat transfer efficiency. Its lightweight structure reduces equipment mass and supports easy customization.
Bendable Aluminum Pipe for Refrigerators
Extensively used as internal tubing for refrigerant and water circulation. Its flexibility adapts to compact or complex layouts. Lightweight aluminum lowers structural load and shipping costs, while its corrosion resistance increases appliance lifespan.
Soft Aluminum Pipe for Medical Devices
Suitable for medical catheters and liquid delivery systems requiring precision and hygiene. The pipe’s ductility allows fabrication of fine, small-diameter tubes with tight tolerances and smooth, nontoxic surfaces. Lightweight and easy to shape for specialized medical applications.
Bendable Aluminum pipe for Decoration
Common in decorative piping, handrails, railings, and art installations. Easily formed into complex shapes to realize design concepts. The corrosion-resistant surface can be anodized or painted for enhanced aesthetics and durability, and its light weight eases installation.
Soft Aluminum Pipe for Electronics Industry
Used in heat sinks, cooling assemblies, and small-diameter cable protection. Excellent thermal conductivity ensures effective heat dissipation, while flexibility allows for tailored layouts in compact electronic devices. Corrosion resistance protects components over time.
Customization Options
Material Grades
Options include 1060, 1050, 1070, 1100 high-purity aluminum grades to meet different requirements for thermal conductivity, formability, or corrosion resistance.
Diameter Range
Diameter ranges from 3mm to 25mm (±0.1mm tolerance), customizable for various application needs.
Wall Thickness
Wall thickness from 0.3mm to 3mm (±0.05mm tolerance), customizable for structural requirements or lightweight design.
Temper
Tempers available: O (annealed), H12, H14, H18, H22, H24 to suit various processing and usage needs.
Surface Finish
Surface finish options: mill finish, anodized, or powder-coated to meet requirements for corrosion resistance, appearance, or specific applications.
Packaging
Available packaging includes wooden spools, plastic-wrapped coils, or custom solutions to ensure safe transportation and convenient use.
Features of Soft Aluminum Tubes
Flexible and Easy to Bend:
Soft aluminum tubes have low hardness, making them very easy to bend and shape. This flexibility is ideal for complex structures or applications that require frequent bending.
High Ductility:
In the soft (O-temper) condition, these tubes can be easily stretched, flattened, or reshaped without cracking, allowing for versatile forming processes.
Excellent Corrosion Resistance:
Aluminum’s natural oxidation resistance enables soft aluminum tubes to perform well in humid or corrosive environments. However, their wear resistance is slightly lower compared to harder aluminum.
Lightweight:
With a density about one-third that of steel, soft aluminum tubes are highly advantageous for lightweight and portable product designs.
Easy to Process:
Soft aluminum tubes are easy to weld, cut, and finish (such as anodizing or polishing), making them cost-effective and convenient to work with.
Lower Mechanical Strength:
Due to their low strength in the soft condition, these tubes are not suitable for high-pressure or high-load applications.
Process of Bendable Soft Aluminum Tubes
1. Extrusion
Preheated aluminum billets (usually high-purity aluminum alloys) are forced through specialized dies under high pressure. The design of the dies precisely determines the tube’s wall thickness and both inner and outer diameters. This extrusion process forms the initial tubular shape.
2. Annealing
After extrusion, the tubes undergo an annealing process. This controlled heat treatment lowers the hardness of the aluminum, achieving a fully soft (O-temper) state. Annealed tubes are highly ductile, making them easy to bend, form, and weld according to various application requirements.
3. Straightening and Cooling
The extruded and annealed tubes are then cooled and mechanically straightened. This step ensures dimensional stability and makes the tubes easier to handle and further process.
4. Surface Treatment
If required, tubes can undergo further surface treatments such as anodizing, polishing, or powder coating. These processes enhance corrosion resistance, improve aesthetics, and provide additional surface protection.
5. Cutting and Quality Inspection
The tubes are cut to customer-specified lengths with high precision. Each batch is subjected to strict quality control measures, including checks for dimensional accuracy, surface smoothness, and physical/mechanical properties, to ensure compliance with customer and industry standards.
Aluminum Profile Manufacturing Capabilities
HTS-ALU, based in Eastern China, focuses on offering end-to-end aluminum profile manufacturing. We excel in custom mold design, precision extrusion, advanced machining, and high-quality surface finishing.
We possess the expertise to design and produce extrusion molds in-house, ensuring precision and efficiency in aluminum profile manufacturing. Our experienced team works closely with clients to develop custom molds based on drawings or samples, ensuring optimal performance for their specific requirements. Typically, the mold production process takes about 7 days, after which we provide samples for client confirmation before beginning full-scale production.
Our production facility houses over 40 advanced extrusion lines, featuring cutting-edge equipment such as a powerful 6000-ton extrusion press. This enables the creation of aluminum profiles in various sizes and forms, ranging from standard industrial applications to specialized products like thermal break profiles for high-end doors and windows. The flexibility of our extrusion capability ensures we can cater to a broad spectrum of industries, including construction and precision engineering.
To provide complete aluminum profile solutions, we offer extensive further processing capabilities. Our services include CNC machining, milling, threading, drilling, precision cutting, punching, welding, and assembly. This range of fabrication options allows us to deliver ready-to-use profiles tailored to exact project specifications, offering unmatched flexibility and reliability to our customers.
For superior durability and visual appeal, we offer various surface treatment solutions. These include anodizing for added corrosion resistance, powder coating for vibrant finishes, fluorocarbon coating for enhanced weather resistance, and wood grain transfer technology for elegant, natural-looking designs. These treatments are customizable to fit specific aesthetic and functional needs, ensuring that profiles not only perform well but also look exceptional.
Our Factory
Our factory is equipped with 40 extrusion production lines to efficiently manufacture aluminum profile. We have one anodizing and electrophoresis line, along with two vertical spraying machines and two horizontal spraying machines for surface treatment. Additionally, we operate two sandblasting machines and six wood grain transfer printing lines, enabling us to provide various aesthetic finishes. To support our production, we also have furnaces for casting aluminum bars, aging furnaces, annealing furnaces, water cooling treatment equipment, and machining equipment, ensuring comprehensive capabilities for high-quality output.
Custom Extrusion from Us
At HTS NEW MATERIALS, we specialize in providing custom aluminum extrusions designed to meet your unique requirements. With advanced production facilities and over 40 extrusion lines, we deliver premium, precision-engineered profiles for a wide range of industries, including aerospace, automotive, construction, and more.
Our custom extrusion services include:
- Tailored Cross-Sections: Create unique aluminum profiles with our expert die-making capabilities, customized to suit your specific project needs.
- Diverse Surface Finishes: Enhance both the appearance and durability of your profiles with options like anodizing, powder coating, polishing, and more.
- Precision Machining: Ensure exact dimensional accuracy with cutting, drilling, milling, and advanced machining services.
- Flexible Tempers: Select from a variety of heat treatments, including T5, T6, and others, to achieve the ideal mechanical properties for your application.
Partner with HTS NEW MATERIALS for innovative, cost-effective, and dependable custom aluminum extrusion solutions that drive the success of your project.
RFQ of Extruded Aluminum Tube
High Purity
The 1xxx series aluminum (e.g., 1050, 1060, 1070, 1100) has an aluminum content above 99.0%, with minimal impurities, resulting in superior electrical and thermal conductivity.Excellent Ductility and Formability
In O temper (fully annealed), the aluminum reaches its softest and most ductile state, allowing repeated bending, deep drawing, or complex forming without cracking. This makes it ideal for applications requiring intricate shapes.Low Strength
Mechanical strength is low (tensile strength typically 60–100 MPa), making it unsuitable for high-load structural use. However, this softness makes manual processing and on-site bending much easier.Excellent Corrosion Resistance
Natural formation of a dense oxide layer provides good corrosion resistance in atmospheric, water, and many chemical environments, making it suitable for humid or outdoor applications.High Thermal and Electrical Conductivity
1xxx series offers thermal conductivity around 200–235 W/m·K and high electrical conductivity, widely used in heat exchange, cooling, and electrical applications.Non-Magnetic and Non-Toxic
Naturally non-magnetic and non-toxic, suitable for food, medical, and special industrial environments.Good Surface Treatment Performance
The soft aluminum is easy to anodize or polish, allowing for enhanced decorative appeal and corrosion resistance.
Anodizing
Forms a dense oxide layer on the surface, greatly improving corrosion resistance and surface hardness. Offers various color options and decorative effects.
Polishing
Achieves a smooth, mirror-like finish through mechanical or chemical processes, enhancing appearance and surface smoothness.
Sandblasting/Shot Blasting
Creates a uniform matte or textured surface using high-pressure abrasive particles, improving adhesion and providing decorative finishes.
Spray Coating/Powder Coating
Applies synthetic resins, paints, or functional coatings for enhanced acid/alkali resistance and scratch resistance, available in various colors and textures.
Chemical Coloring
Alters the surface color by chemical means, allowing for customized hues and special visual effects.
lectrophoretic Coating
Creates uniform transparent or colored coatings via electrophoresis, improving corrosion and UV resistance, often for high-end decorative applications.
Brushed Finish
Produces fine, regular linear patterns with mechanical brushing, offering both decorative and practical advantages.
For custom aluminum extrusion projects, we accept a variety of drawing formats, including CAD files, STEP files, and PDF files. However, for extrusions that require additional machining processes, it’s recommended to provide STEP files, as they ensure precise 3D modeling for machining accuracy.
While PDF files are acceptable, converting them into CAD drawings may result in the loss of certain details, requiring us to manually redraw the design, which could increase lead time. For the fastest and most accurate quotation, we recommend providing CAD files (e.g., DWG/DXF) and STEP files to ensure efficient design evaluation and pricing.
Mold fees are an essential part of the custom aluminum extrusion process. Since every order requires a uniquely designed mold tailored to specific requirements, these molds cannot be used for other products. Therefore, the mold fee is necessary and non-negotiable.
We require 100% upfront payment of the mold fee before mold development begins to ensure timely production. However, as a token of appreciation for your support, we offer a refund of the mold fee or equivalent discounts once the order reaches a certain production volume. Specific policies can be discussed based on your order volume and collaboration details.
Our minimum order quantity (MOQ) varies depending on the size of the product. For smaller-sized products, the MOQ is typically 500kg, while for larger-sized products, it is 2 tons.
We will specify the exact MOQ requirements during the quotation process. If your order quantity does not meet the MOQ, we can still arrange production, but an additional fee will be applied to cover mold preheating and production setup time. Rest assured, this extra fee will be reasonable, and we aim to keep it as minimal as possible to ensure smooth cooperation.
Packaging can be customized according to your needs. Options include using protective film or paper to separate and protect the surface, or foam film for additional surface protection. Products can be palletized or packed into cartons, and the quantity per pallet or carton can be specified by the customer.
The standard packaging involves bundling several pieces together with plastic wrap and then securing them onto pallets. Any packaging requirements beyond the standard will be accommodated, and the associated costs will be clearly provided to the customer.
Mold production typically takes 7 days. After the sample is confirmed, producing a full container load of 26 tons generally requires 14 days for extrusion alone. If surface treatment is required, an additional 3 days will be needed. For machining, extra time will be required depending on the complexity and volume of the machining work. The exact additional time for machining will be determined based on the specific processing requirements.
Aluminum profiles are naturally corrosion-resistant due to the formation of a thin, protective oxide layer when exposed to air or water. This oxide layer is stable and self-repairing, meaning that even if the surface is scratched or cut (such as at exposed ends or during processing), the aluminum will not rust or corrode like iron or steel. Instead, the exposed areas will quickly form a new oxide layer, providing continuous protection against further oxidation.
With proper design, installation, and maintenance, aluminum profiles can last for decades, even in challenging environments. For example, untreated aluminum can easily withstand 20-30 years in outdoor applications, while profiles with surface treatments like anodizing or powder coating can last even longer, often exceeding 50 years. This makes aluminum an excellent choice for applications where durability and long-term performance are essential.
The price of aluminum profiles consists of several components: raw material costs, extrusion processing fees, surface treatment fees, machining costs, and additional packaging fees. Among these, the cost of aluminum as a raw material tends to fluctuate frequently, while other fees remain relatively stable. Due to these fluctuations, our quotations are typically valid for 7 days.
Pricing can be structured in different ways depending on the product and requirements. It can be calculated by weight (e.g., cost per ton), by length (e.g., cost per meter), or by piece (e.g., cost per unit). For products involving extensive machining, such as heat sinks, pricing is generally calculated on a per-piece basis to accurately reflect the additional processing costs. This flexible pricing approach ensures the quote is tailored to the specific needs of the customer.
We can manufacture aluminum profiles in compliance with technical requirements that meet European standards (EN), American standards (ASTM/AA), or other standards as specified by the customer. Custom production is tailored to ensure that the profiles meet the specific standard requirements requested.
Our production equipment is designed for the metric system. If the drawings provided are in the imperial system, we will convert them into metric units for production to ensure accuracy.
It is important to note that while we can machine imperial-threaded holes for fasteners, if you require us to supply matching imperial fasteners, they may not always be available in stock. Custom orders for imperial fasteners typically require a large volume for production. Please consider this when planning your project.
